Progress on the build
Weight & Balance Complete 762 Lbs
First Engine Run Complete
Working off Squawks
| Testing | Status | |
|
|
Weight and Balance 762# | Complete |
|
|
Ground Test | In Work |
|
|
Tags and Issues worked During Ground Test | In Work |
Let her take a look at the sky!
|
New pages in red |
Hours | Date Completed | |
|
|
Rudder | 27 | 10 Dec 04 |
|
|
Horizontal Stab | 14 | 6 Jan 05 |
|
|
Elevator | 27 | 27 Feb 05 |
|
|
Picked up the rest of the kit from the factory | 1 Apr 05 | |
|
|
Flaps | 15 | 9 Apr 05 |
|
|
Ailerons (With the hinge option) | 22 | 23 Apr 05 |
|
|

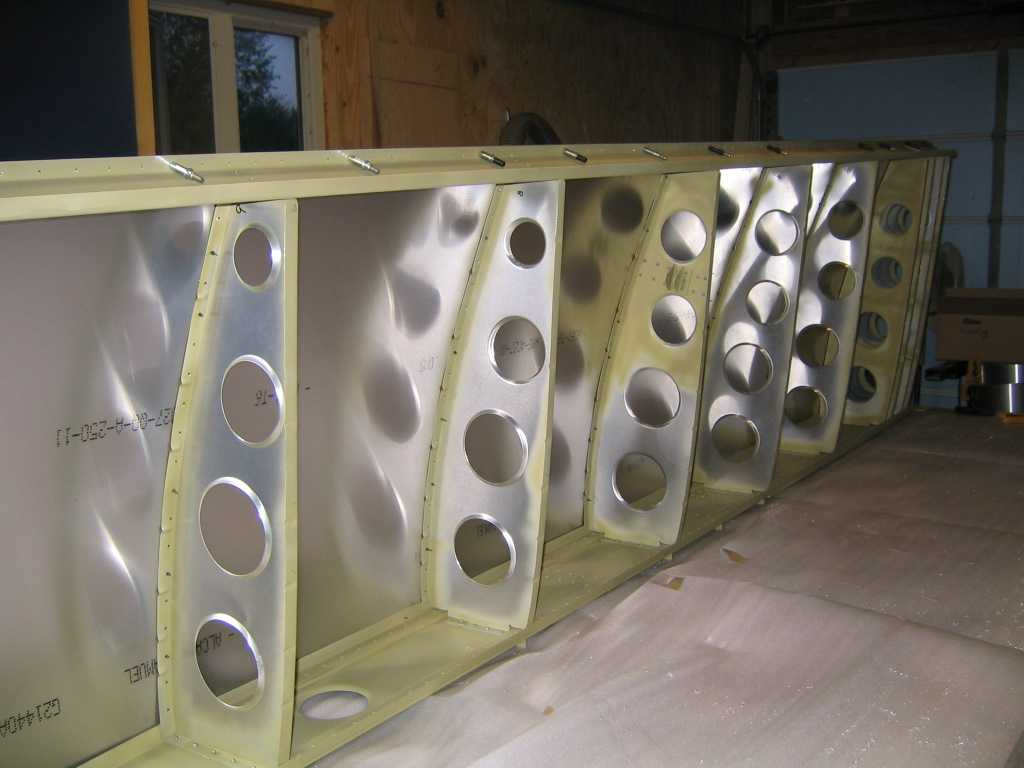

Left Wing Part 1 | 89 | 2 July 05 |
|
|
Left Wing Part 2 | ||
|
|
Left Wing Part 3 | ||
|
|
Right Wing | 77 | 21 Sept 05 |
|
|
42 Inch Wood Brake for Bending | 2 | 28 Sept 05 |
|
|
Rear Fuselage | 59 | 29 Oct 05 |
|
|
Forward Fuselage | 34 | 15 Nov 05 |
|
|
Fuse side skins | 58 | 2 Jan 06 |
|
|
Forward Fuselage Interior Part 1 | 35 | 22 Feb 06 |
|
|
Forward Fuselage Interior Part 2 | 82 | 26 Mar 06 |
|
|
Fuel system and Brakes | 26 | 5 May 06 |
|
|
Control cables Part 1 | 16 | 15 May 06 |
|
|
Gear | 28 | 6 Sept 06 |
|
|
Engine is here | 8 Sept 06 | |
|
|

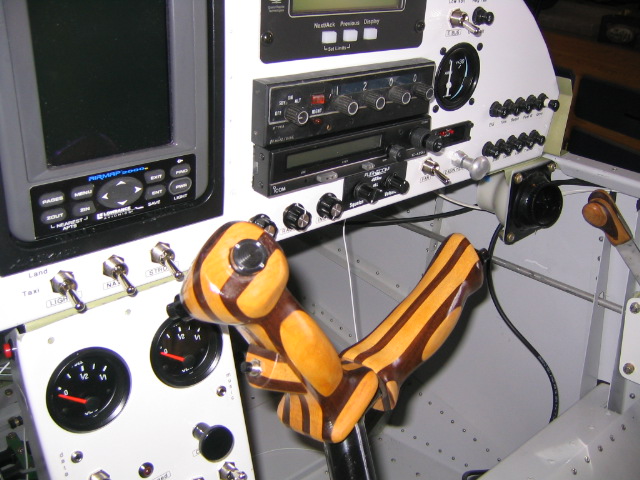

Stick grip and vents | 13 | 1 Oct 06 |
|
|
Throttle Mod | 19 | 10 Oct 06 |
|
|
Tail Install and control cables | 16 | 22 Oct 06 |
|
|
Prep Top skin | 50 | 15 Nov 06 |
|
|
Assemble Top skin | 40 | 3 Dec 06 |
|
|

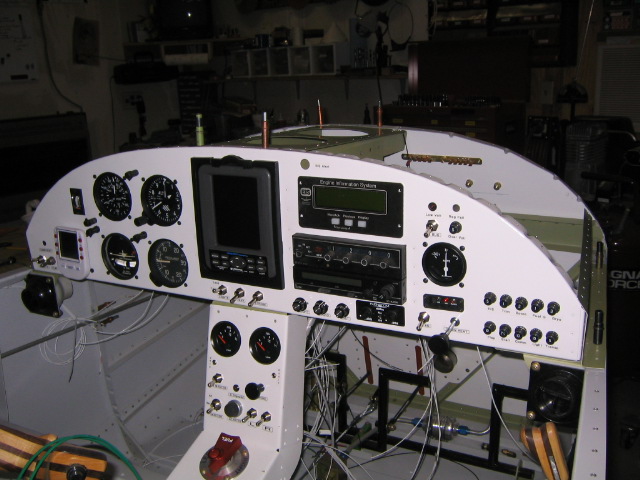

Instrument Panel Part 1 | 36 | 26 Dec 06 |
|
|
Fire Wall and Fwd Top skin, Throttle Mod Pt 2 | 39 | 4 Feb 07 |
|
|
Inst Panel Part 2 | 70 | 15 April 07 |
|
|
Brake lines | 4 | 20 June 07 |
|
|
Seats | 15 | 18 July 07 |
|
|
Hang the Motor | 28 | 2 Aug 07 |
|
|
Forward top skin and hatches | 12 | 28 Aug 07 |
|
|
Electrical and Panel preliminary design | 22 | |
|
|
Electrical | 4 | |
|
|
Canopy Part 1 | 45 | 16 Dec 07 |
|
|
Canopy Part 2 | ||
|
|

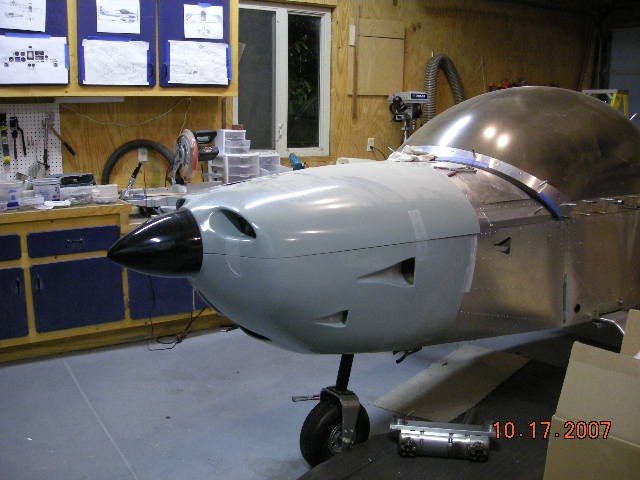

Cowl Part 1 | 54 | 2 Dec 07 |
|
|
Cowl Part 2 | ||
|
|
Cowl Part 3 | ||
|
|
Prop | 6 | 2 Dec 07 |
|
|
Interior | 8 | 16 Dec 07 |
|
|
Moved to the Hangar | 13 Jan 08 | |
|
|
Final Assy | 40 | 1 May 08 |
| Total | 1079 | ||
| Ok, ZAC likes metric I think in inches. So here is a quick converter | |||
|
|
Note: 1 Inch = 2.54 cm, 1 Feet = 30.48 cm, 1 Feet = 12 Inch This free script provided by JavaScript Kit |
||
![]()
